🎯 How to Set Up Your iMarksman Simulator (Step-by-Step Guide)
Setting up your iMarksman Simulator is straightforward - but proper positioning is critical for accuracy and performance.
This guide will walk you through everything you need to know.
🧩 What You Need
Before starting, make sure you have:
-
💻 Computer (Windows or Mac)
-
📽️ Projector
-
🖥️ Projection screen or wall
-
📷 Sensor camera
-
🔫 Laser training gun or cartridge
📐 System Layout Overview
Your system works by combining projection + camera detection + laser input.
👉 The projector displays targets
👉 The camera watches the screen
👉 Your laser shots are detected and scored
🖼️ Recommended Setup Layout
Key positions:
-
Projector → facing screen
-
Camera → centered, facing screen
-
Shooter → standing 5–10 yards away
⚙️ Step 1 — Position the Projector
-
Aim the projector at your screen or wall
-
Adjust until the image is:
-
Straight (no keystone distortion)
-
Filling the full target area
-
👉 Tip: A clean rectangular image improves calibration accuracy
📷 Step 2 - Set Up the Sensor Camera
This is the most important component for accuracy.
-
Mount camera:
-
Above or below the screen
-
Centered horizontally
-
-
Make sure it:
-
Sees the entire projection area
-
Has no obstructions
-
⚠️ Important:
Once calibrated, do not move the camera
🔌 Step 3 - Connect Everything
-
Projector → Computer (HDMI)
-
Camera → Computer (USB)
-
Launch iMarksman software
🖥️ Step 4 - Choose Your Training Mode
iMarksman supports multiple applications:
🚔 Law Enforcement
-
Use-of-force scenarios
-
Shoot / no-shoot decisions
-
Instructor-controlled simulations
🏁 Sport Shooting
-
Steel Challenge
-
IPSC / USPSA stages
-
Speed and accuracy drills
🎮 Entertainment
-
Interactive shooting games
-
Target challenges
-
Family-friendly modes
🎯 Step 5 - Calibration (Critical Step)
Calibration ensures your shots land exactly where you aim.
How to calibrate:
-
Enter Calibration Mode
-
Aim at each target point
-
Fire your laser
-
Repeat for all points
📏 Best Practices:
-
Stand 5–10 yards away
-
Hold a steady position
-
Avoid bright light on the screen

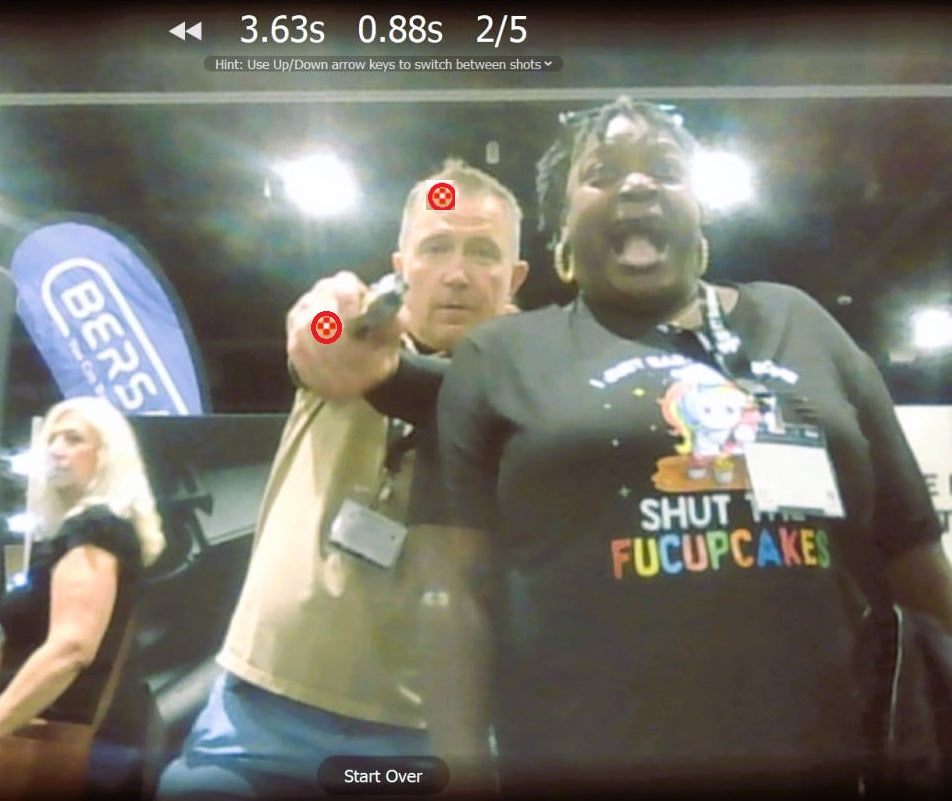

🔫 Step 6 - Start Shooting
Once calibrated:
-
Pull the trigger
-
Laser is emitted
-
Camera detects a hit
-
Software displays the result instantly
⚡ Tips for Best Performance
-
Use a matte screen (reduces glare)
-
Avoid direct sunlight
-
Keep lighting consistent
-
Ensure the camera remains stable
⚠️ Troubleshooting
Shots not registering
-
Recalibrate
-
Check camera angle
-
Reduce ambient light
Inaccurate hits
-
Repeat calibration carefully
-
Check laser alignment
-
Confirm the camera is centered
Camera not detected
-
Verify USB connection
-
Select the correct camera in the software
🧠 Why This System Works
Unlike basic dry-fire tools, iMarksman gives you:
-
Real-time feedback
-
Shot tracking
-
Performance improvement
💥 Simple Explanation
You shoot a laser at the screen — the system sees it, tracks it, and scores it instantly.
🚀 Ready to Train
With the right setup, you can:
-
Train
-
Compete
-
Practice anytime
All without ammo.
